cPCI Pulse Processor Boards

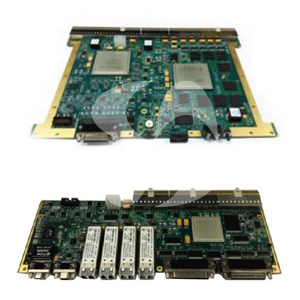

The cPCI Pulse Processor Boards are a three FPGA based processing solution consisting of two boards; Front IO and Rear IO
board. The Front-IO board is a dual FPGA based board in 6U form factor featuring cPCI interface for backplane communication.
The Rear IO board is single FPGA based rear transition module with four optical links, RS422 and LVTTL interfaces on Micro-D
connector.
Key Features
- Front IO board
- Supports data transfer PCI 32/64bit @ 66MHz or 33MHz Interface
- Two independent banks of 36-bit QDR II interface, each having 2MX4X36 bits
- Two independent banks of 32-bit DDR II, each having 512MB size
- lRear IO board
- One 10/100/1000Mbps Ethernet interface on Micro-D Connector
- Four optical serial links, each supporting 3.125/2.125Gbps serial data rate
- 20 RS422 Transmitter and 20 RS422 Receiver signals on Micro-D connectors
- 40 LVTTL IO interfaces on Micro-D connector
